I generated a load map designation into an Excel spreadsheet. Consisting of live load and superimposed dead load. As referred through Eurocode standard on EN 1991-1-1 and material structural standard.
Using the above data, I draw, highlight and annotate both load combination per designated area based on the room function and structural materials using Bluebeam.
Software Utilized: Bluebeam and Excel
Supervision by: Wimala Kitri and Alfred Lim
Image Belong to © M. Development 2020

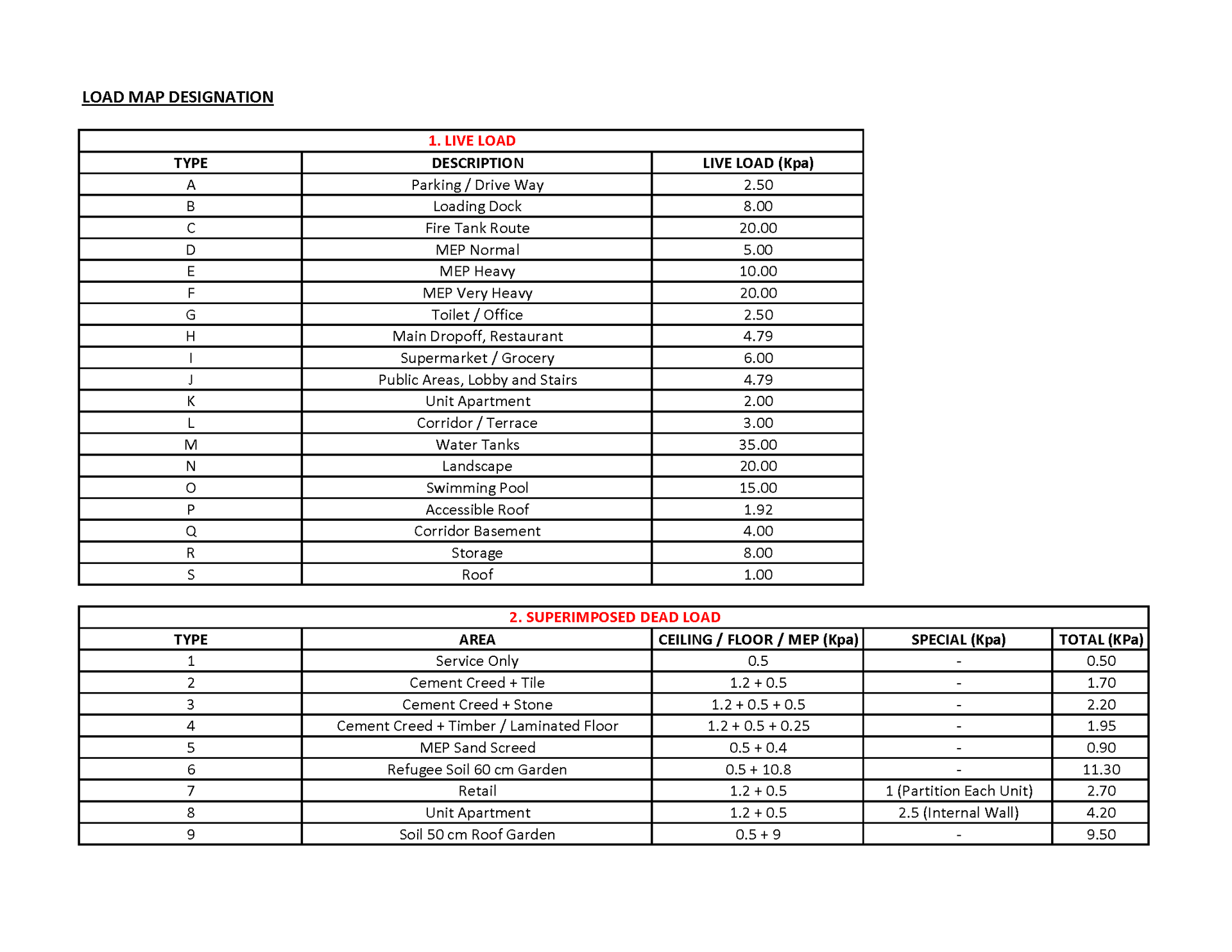

Loading Map Data

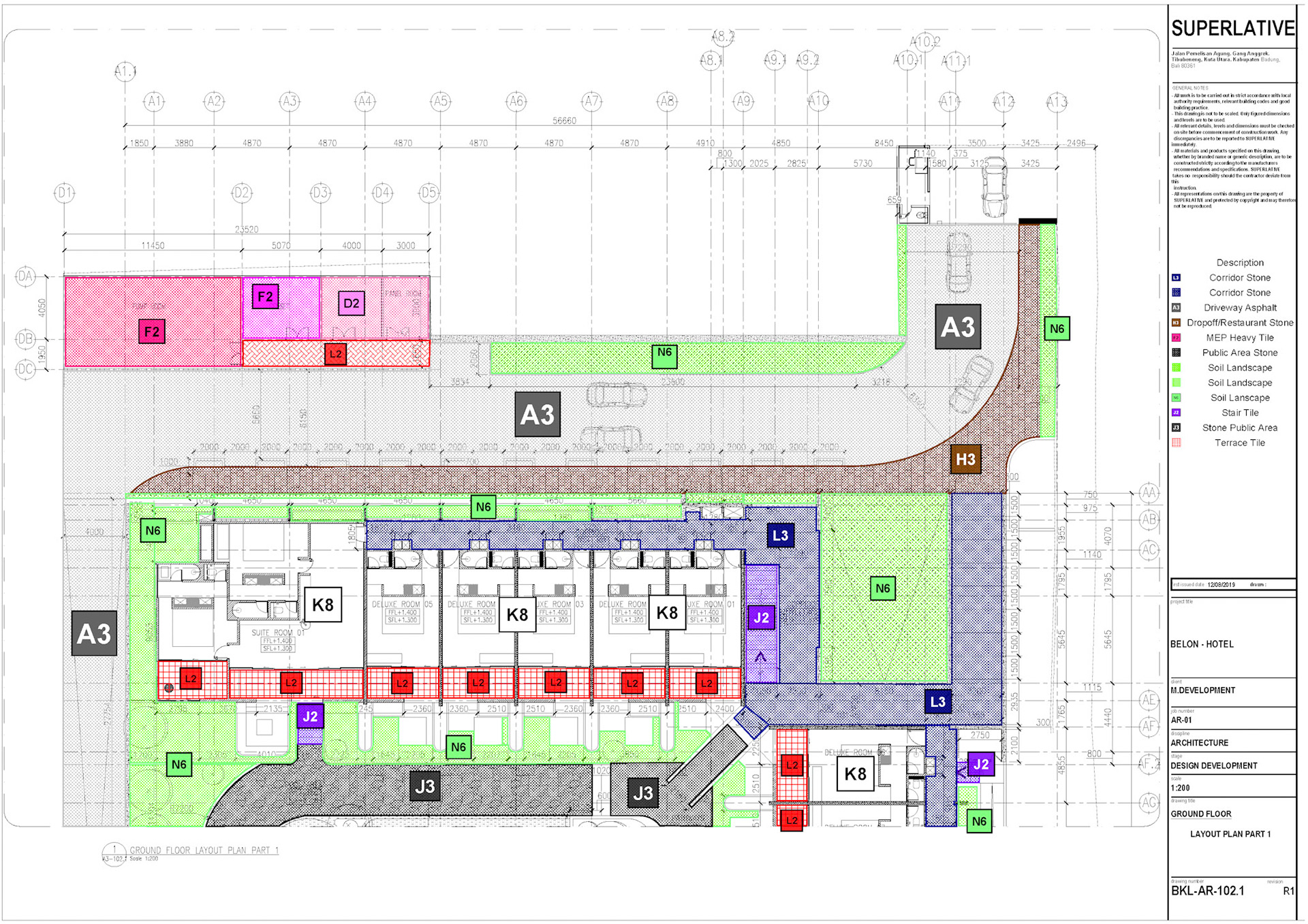

Ground Floor Plan Part 1

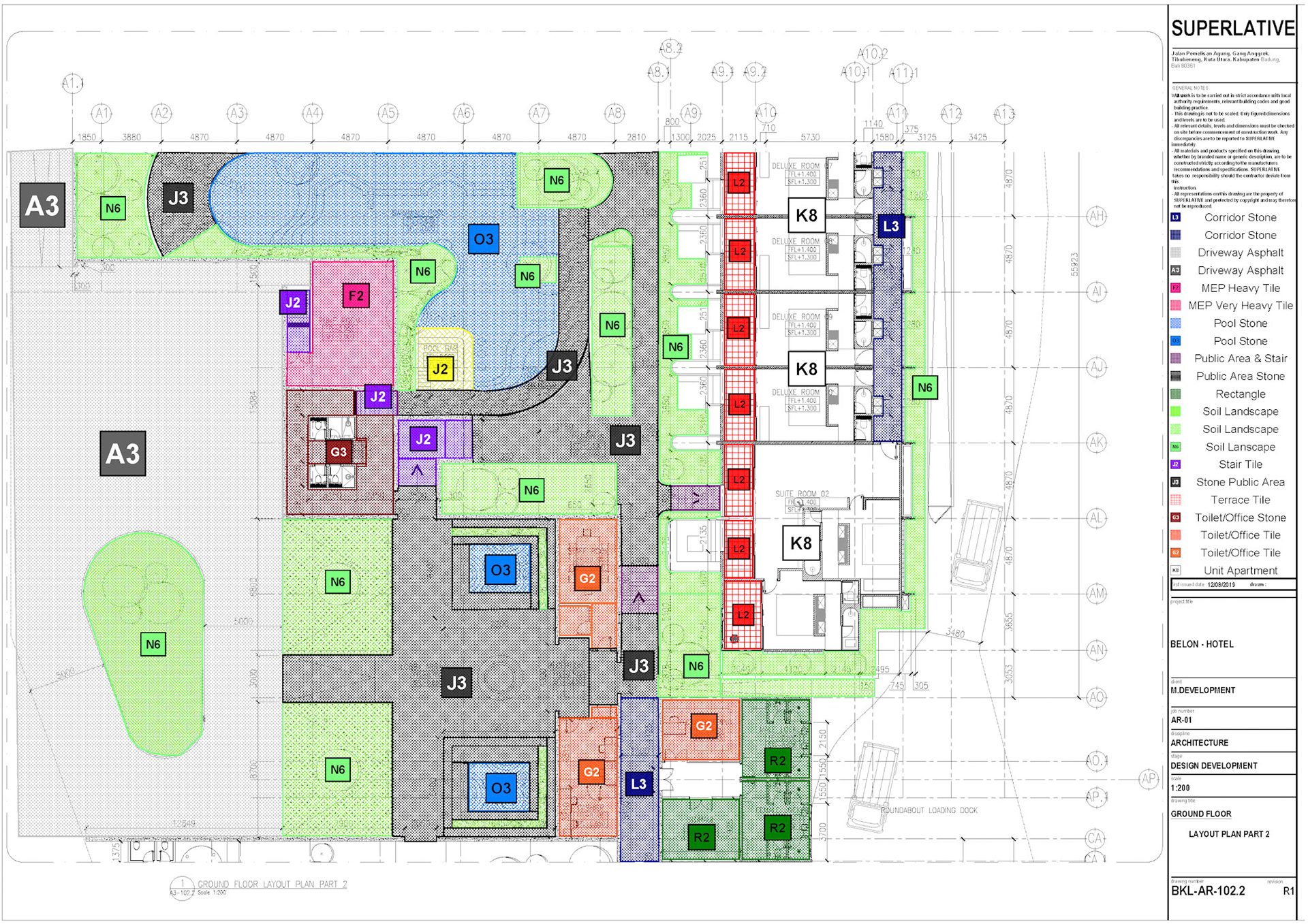

Ground Floor Plan Part 2

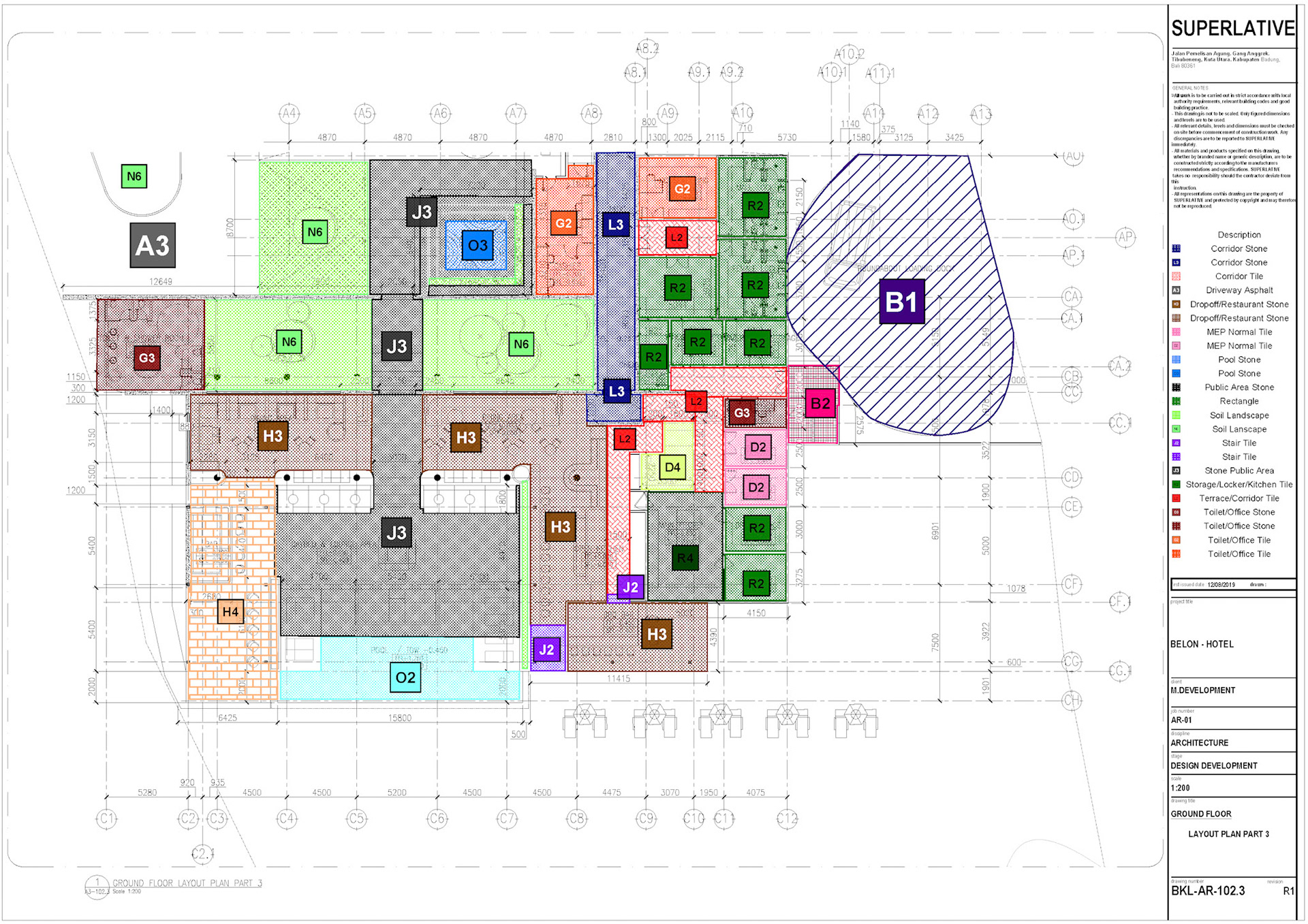

Ground Floor Plan Part 3

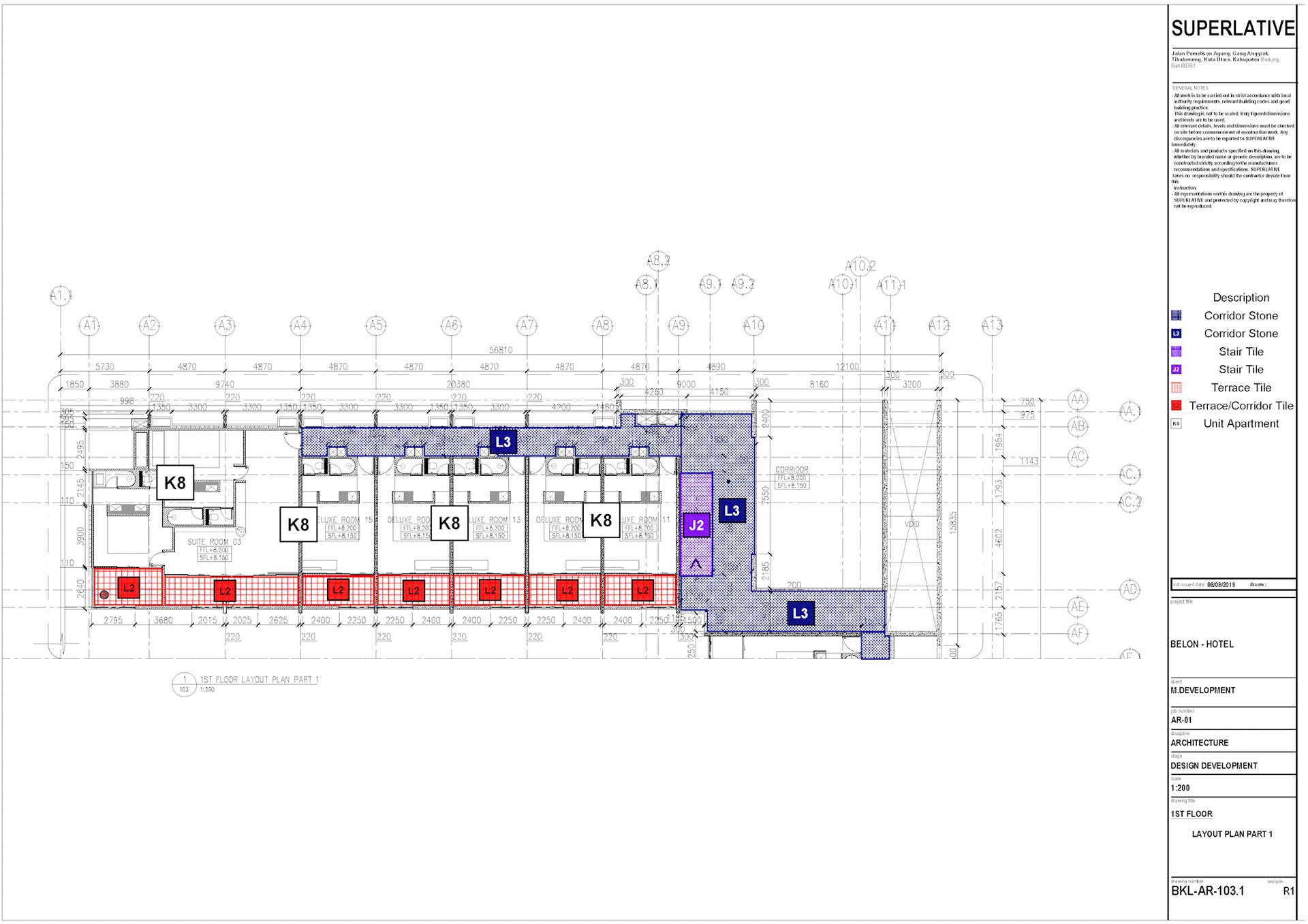

1st Floor Plan Part 1

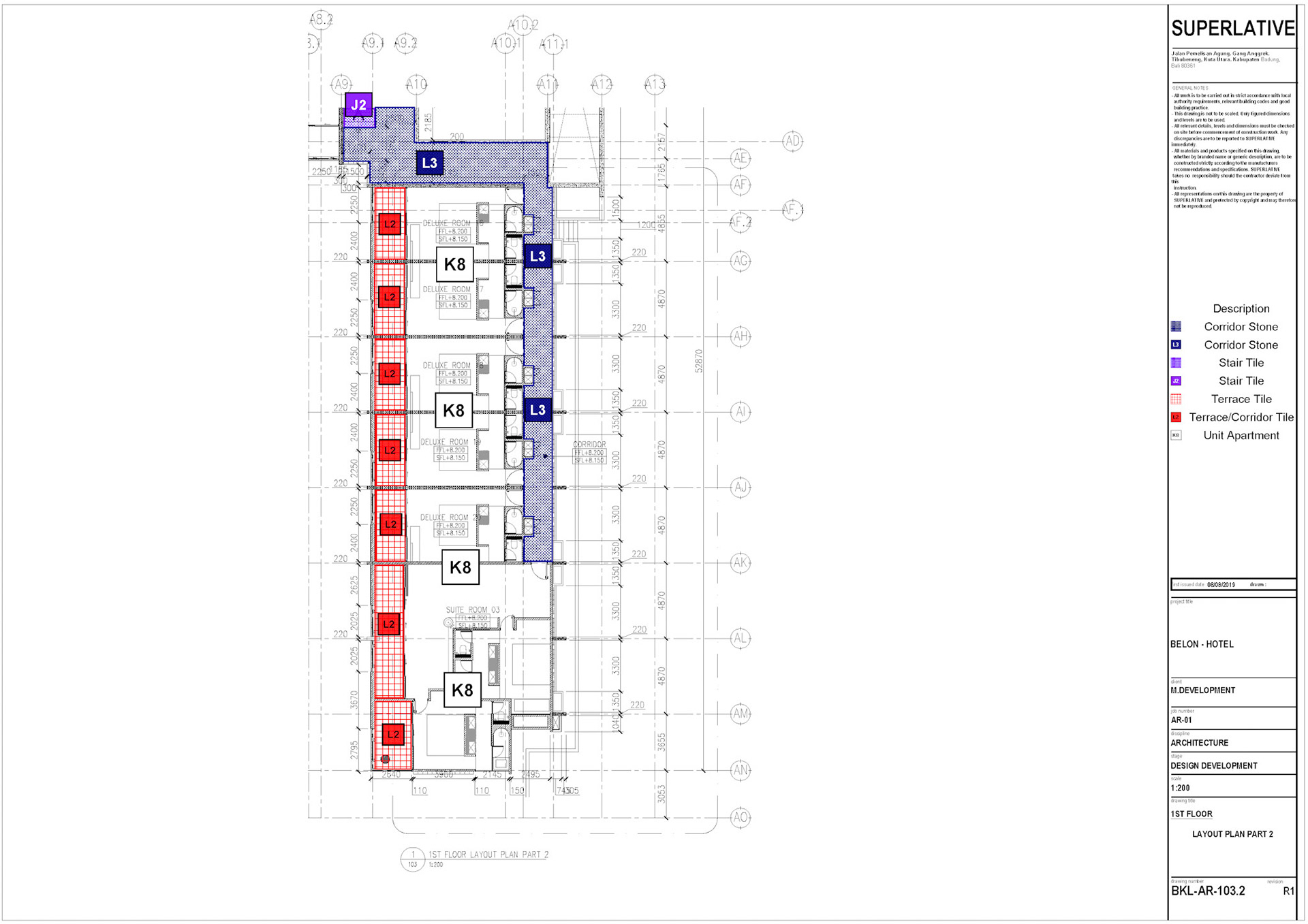

1st Floor Plan Part 2

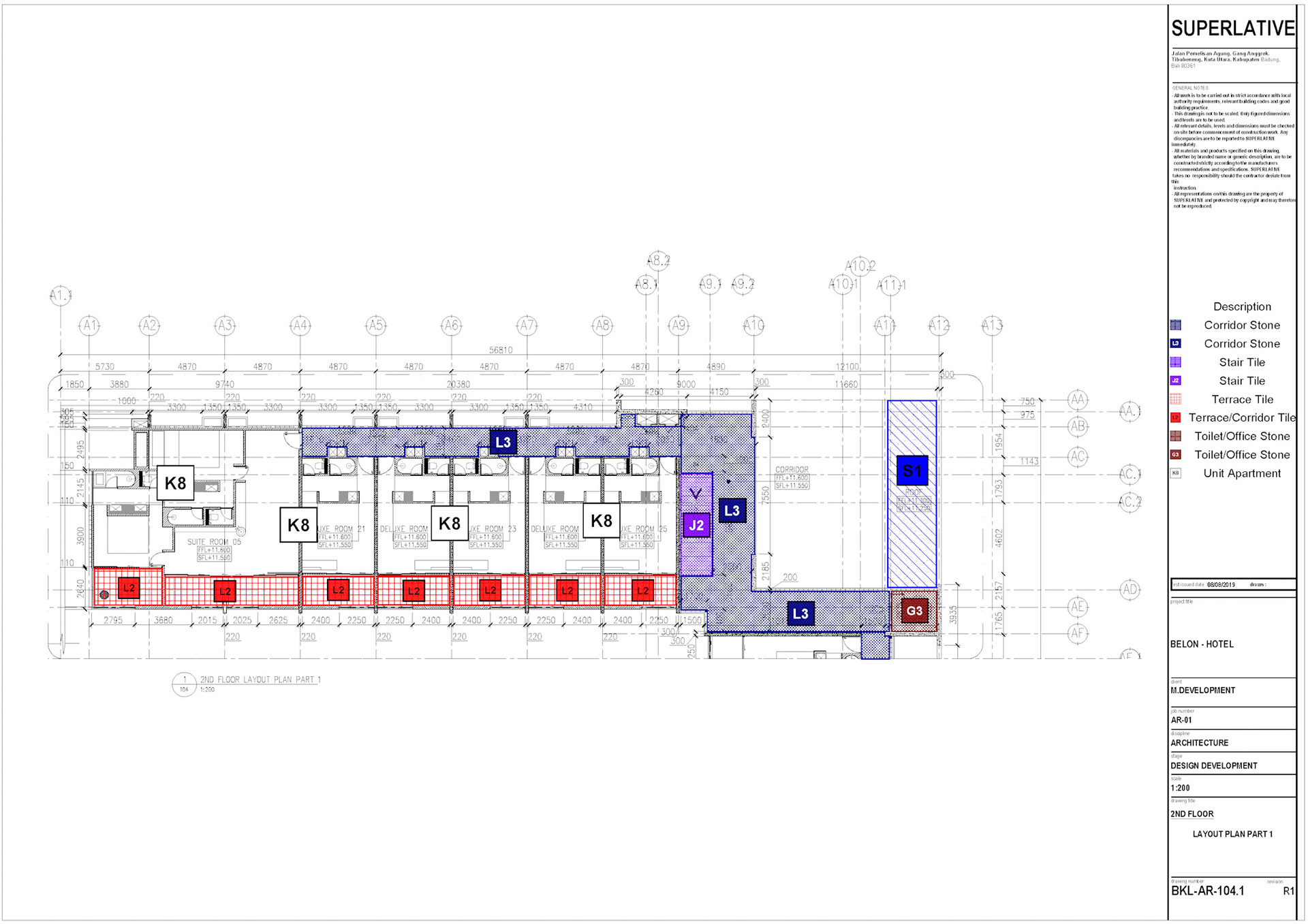

2nd Floor Plan Part 1

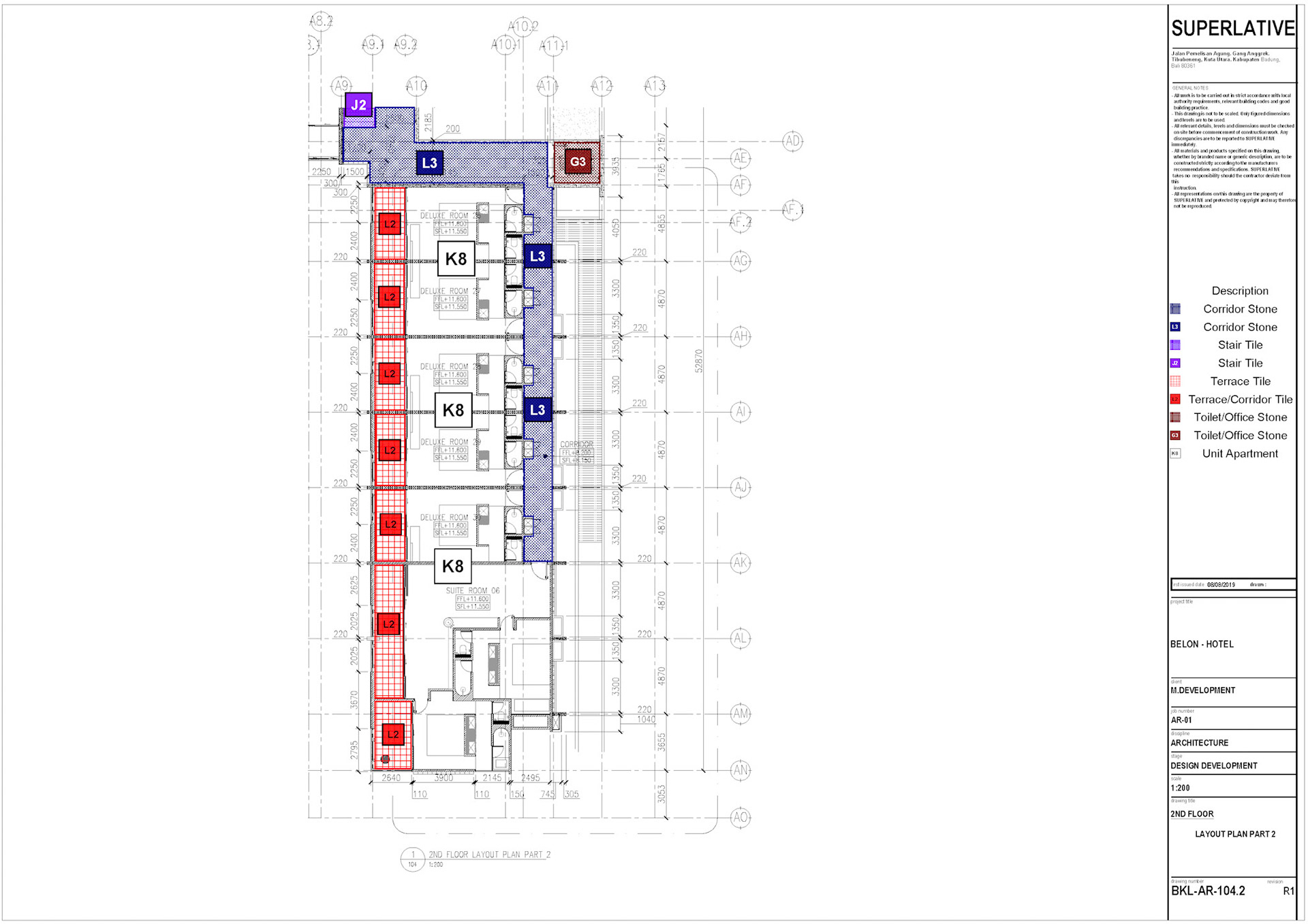

2nd Floor Plan Part 2

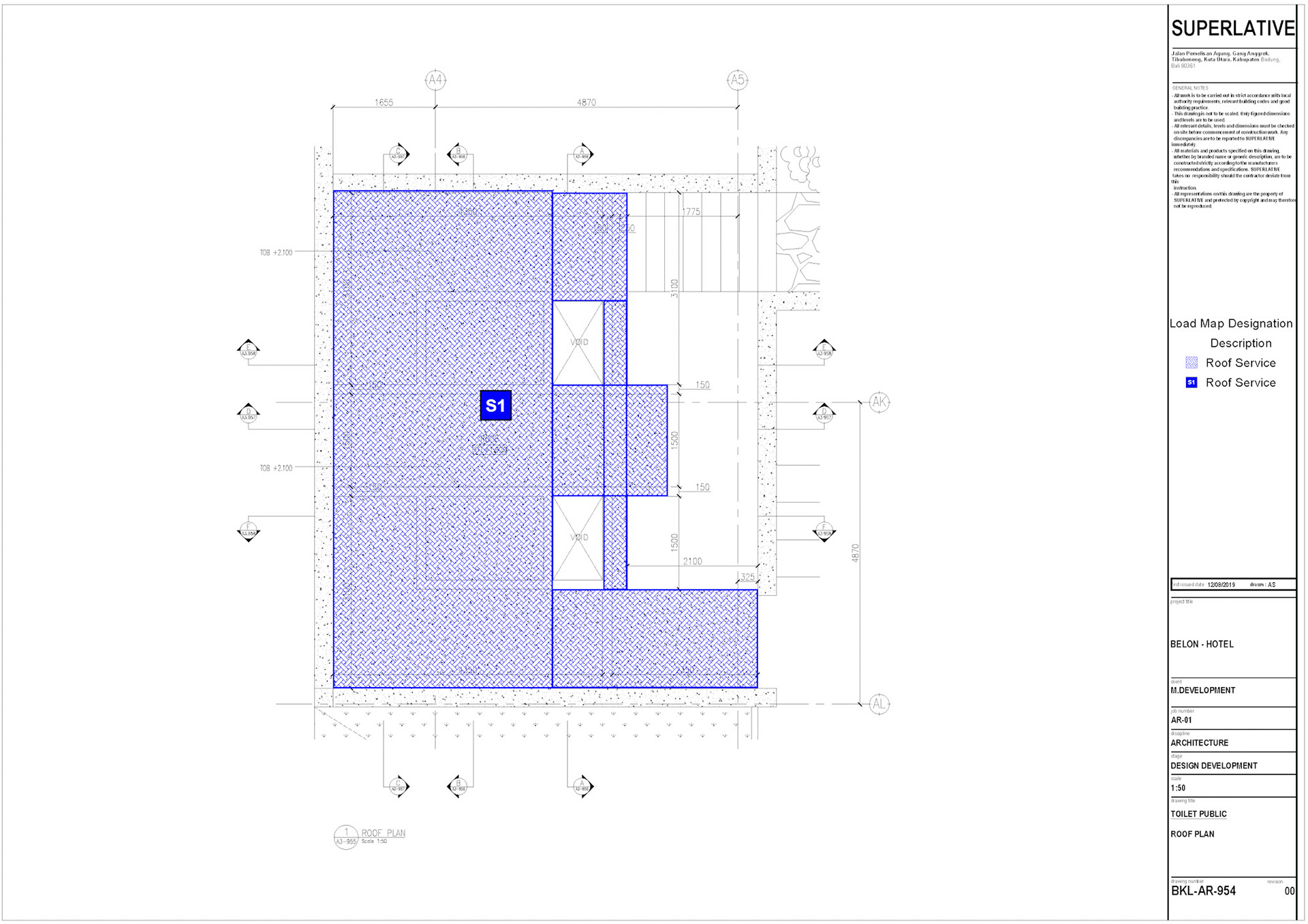

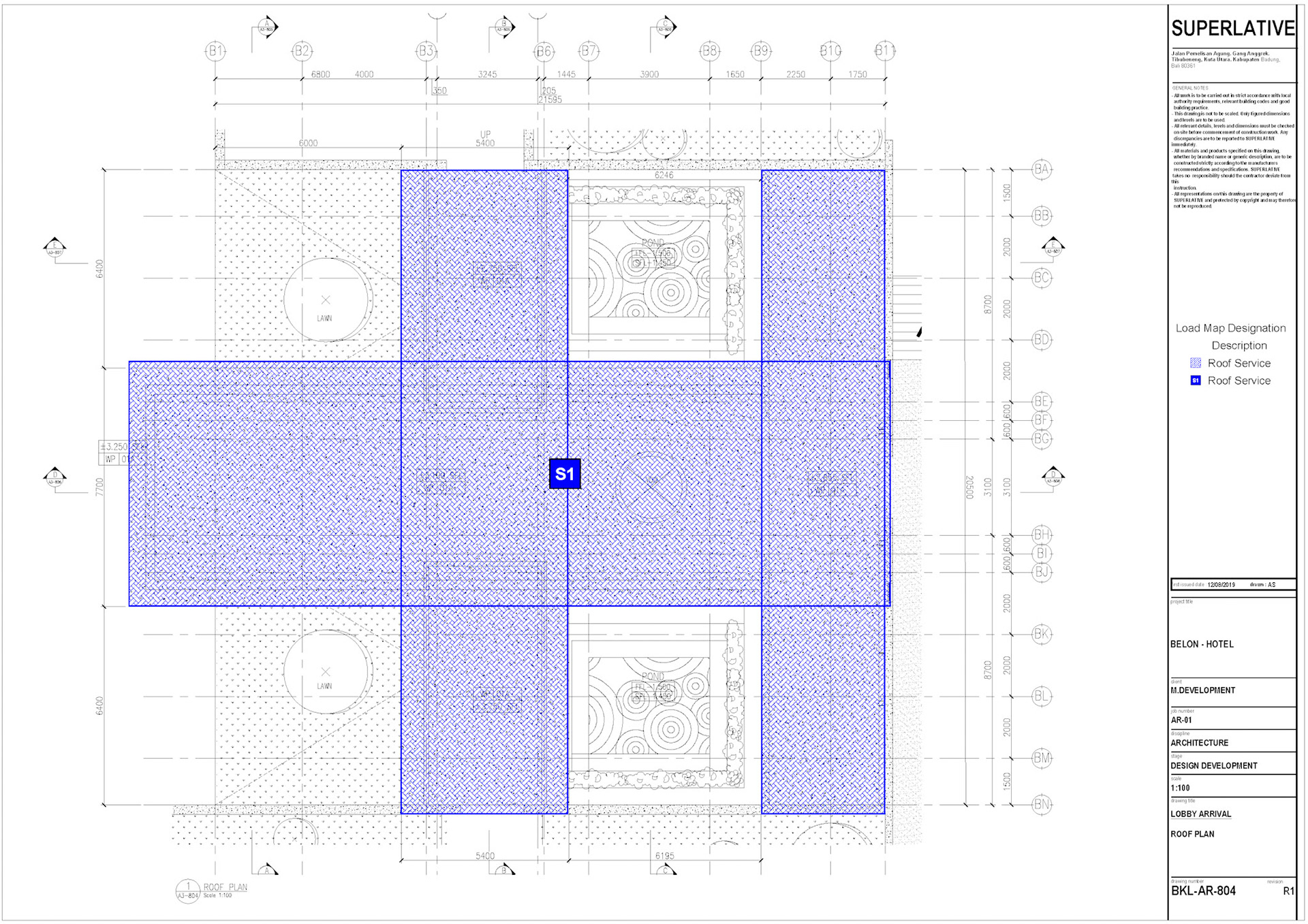

Toilet Roof Plan
