My task involved creating a 6-star sustainable house design project located within the Monash City Council Subdivision - SD27375 – Lot 86. The design is divided into two sections, consisting of the architectural and structural design.
Architectural put in consideration of passive design features for an efficient and long lasting structure, considering climate design, shading and orientation, layout and zoning, building materials, insulation, ventilation, and thermal mass. Designed following the planning regulation under Monash City Council jurisdiction as shown below.
Structural design covers foundation layout, cut and fill, slab section, roof truss, joist, and timber wall framing. Calculated and designed following the Australia standard as per AS 1684, AS 1720, AS 2870, AS 4100 & Pocket Span Table 2012.
Software Utilized: Revit and AutoCAD
Architectural Render and Design

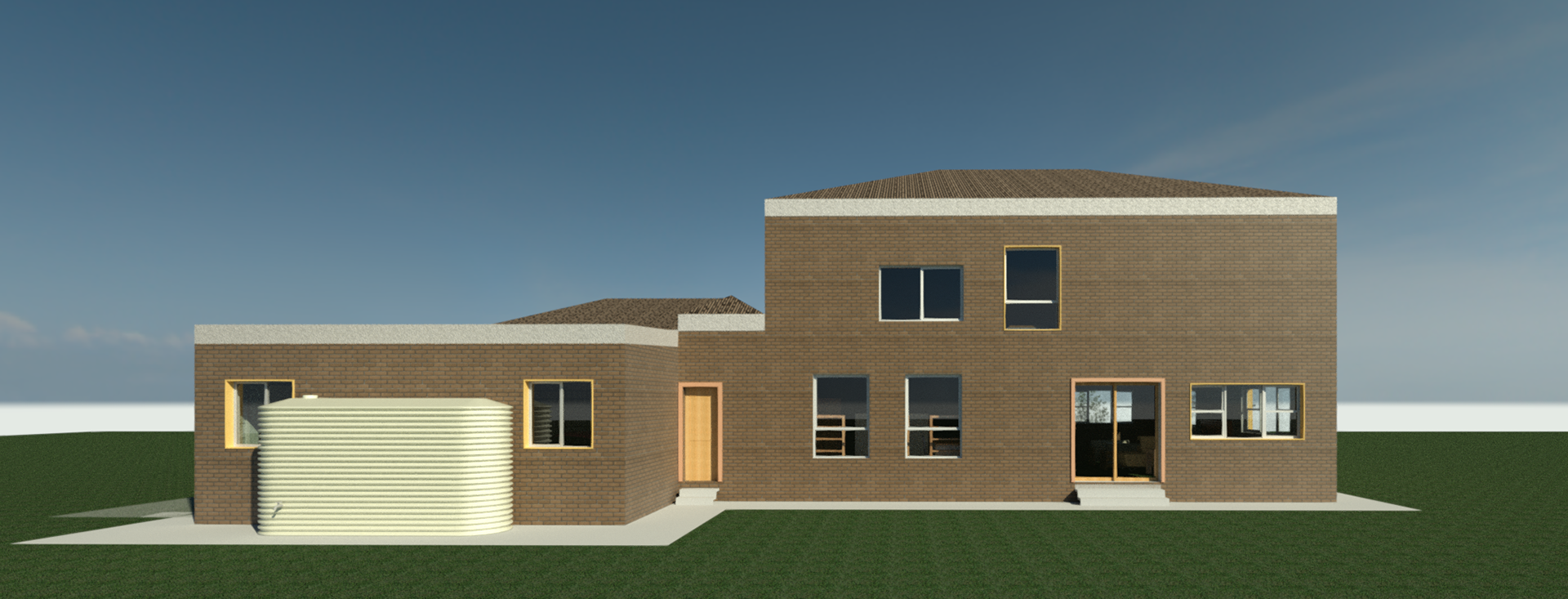

North Elevation Render
West Elevation Render
East Elevation Render
South Elevation Render

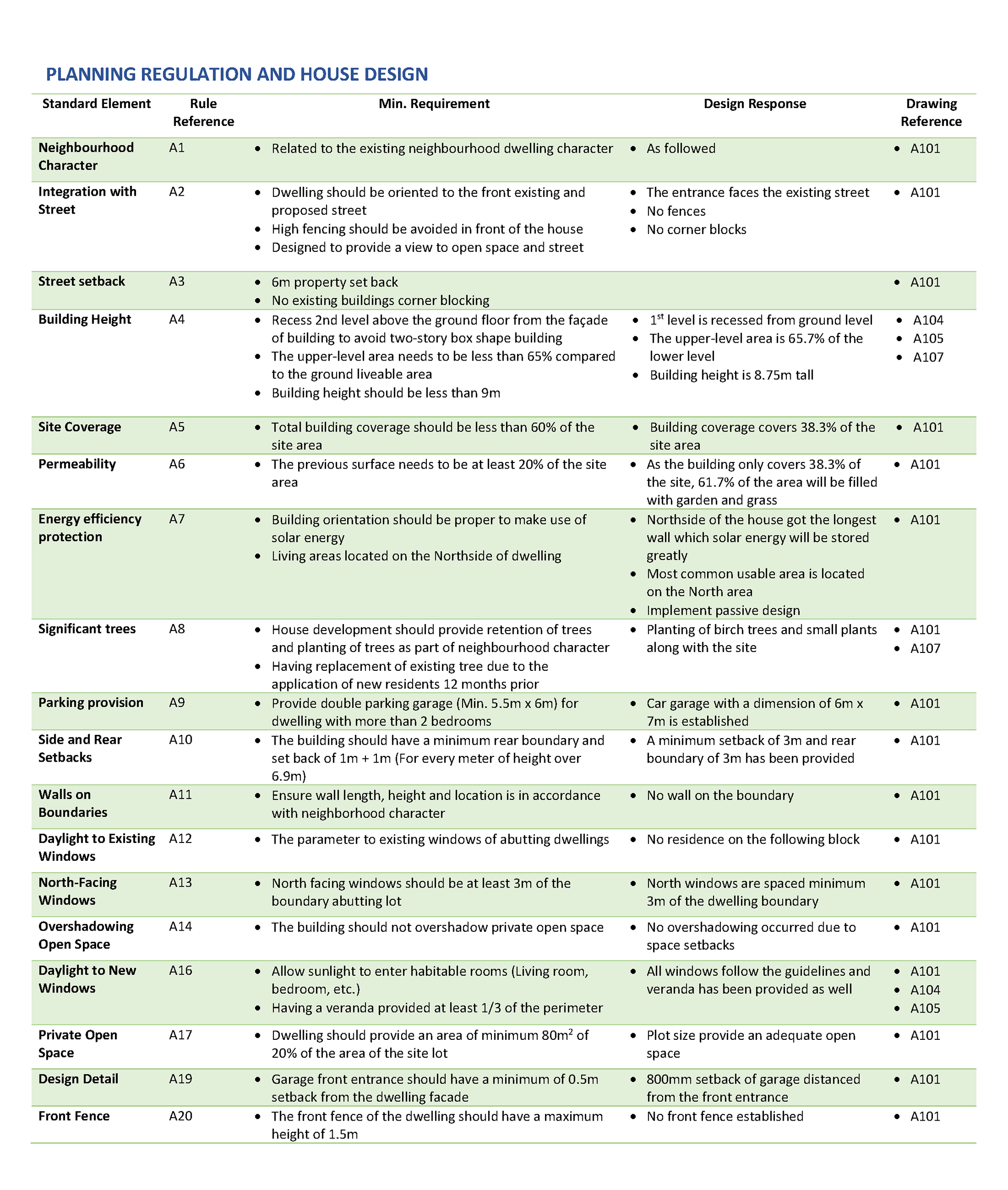

Dwelling Planning Regulation

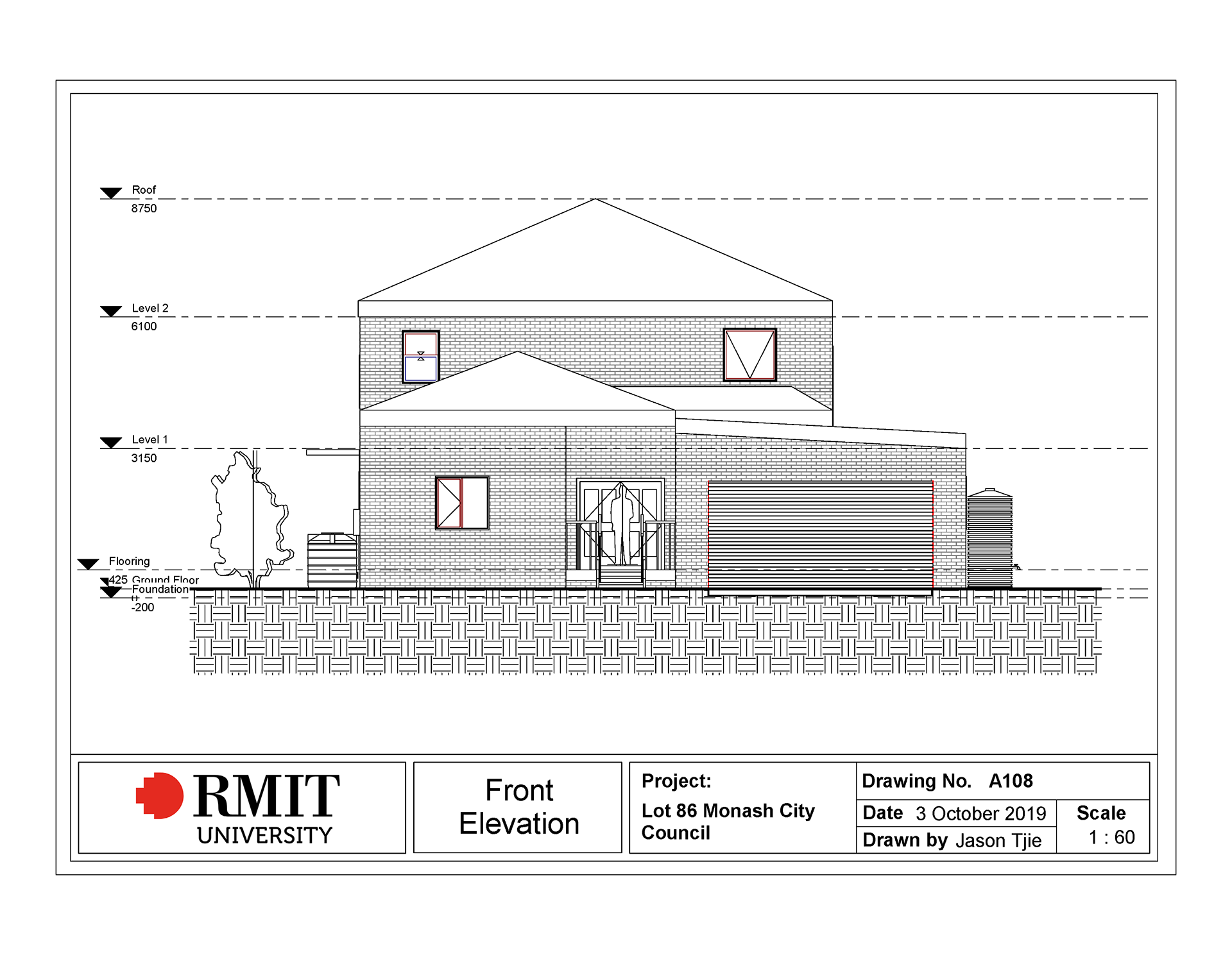

Front Elevation View

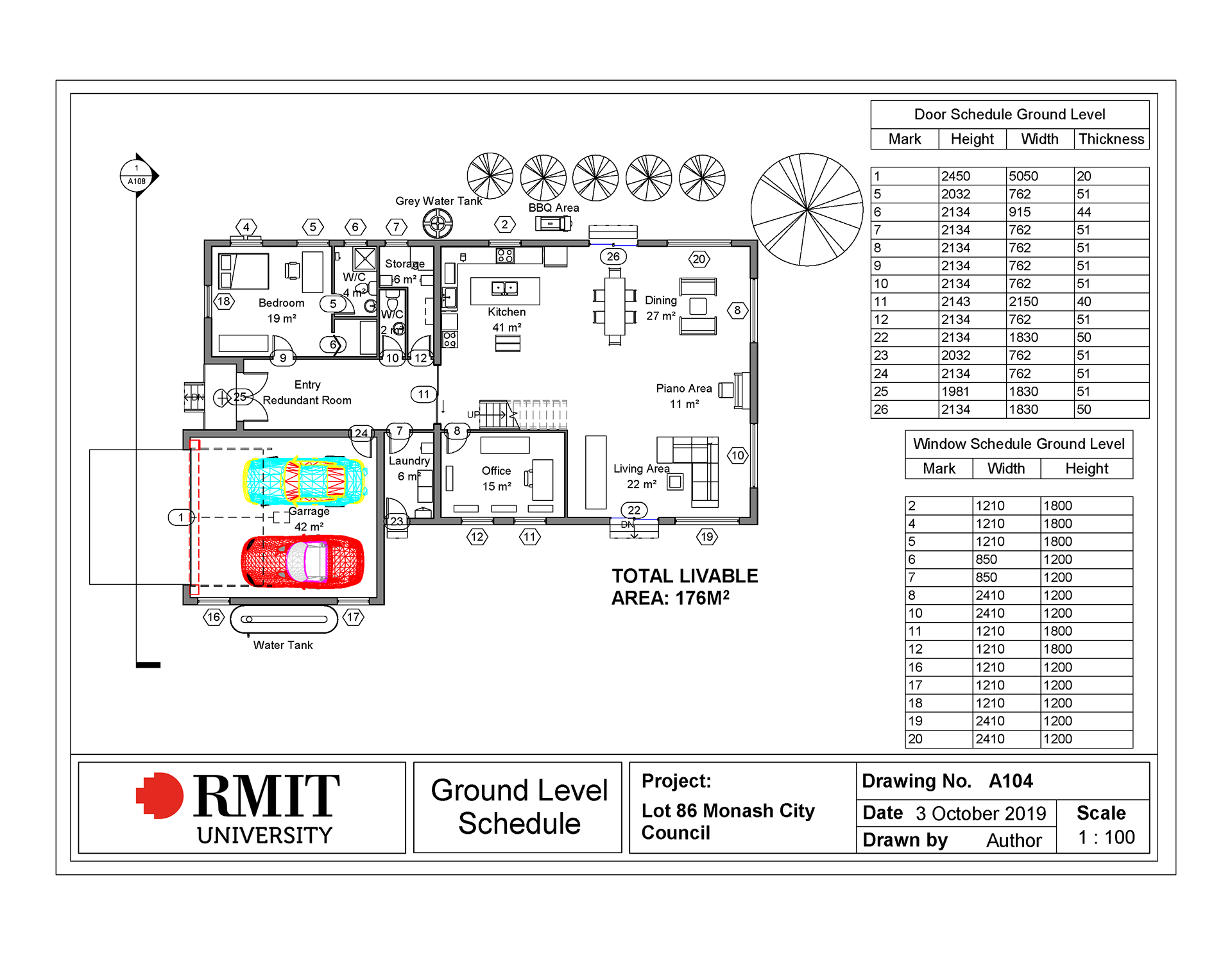

Ground Level Plan and Schedule

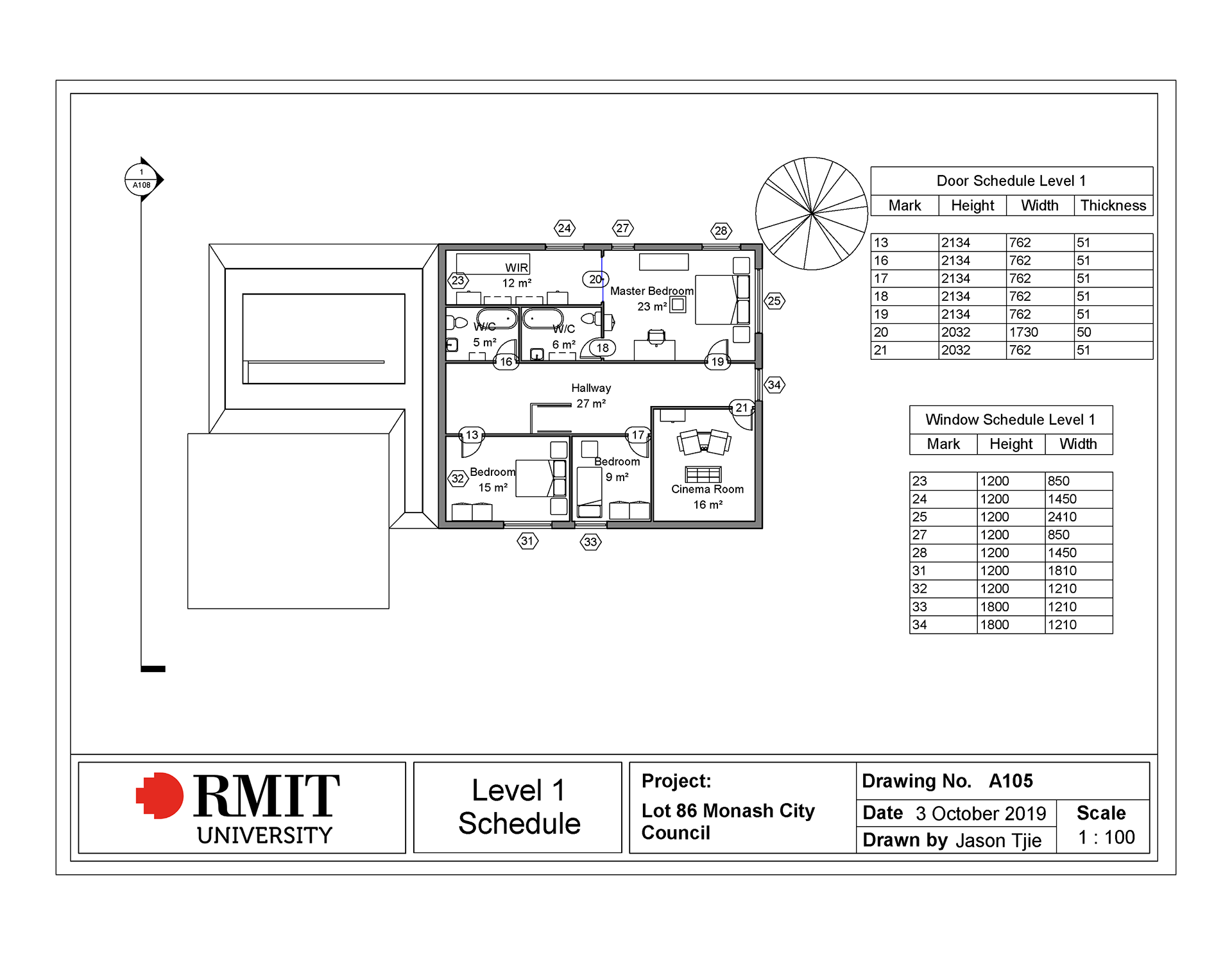

Level 1 Plan and Schedule
Structural Analysis and Design

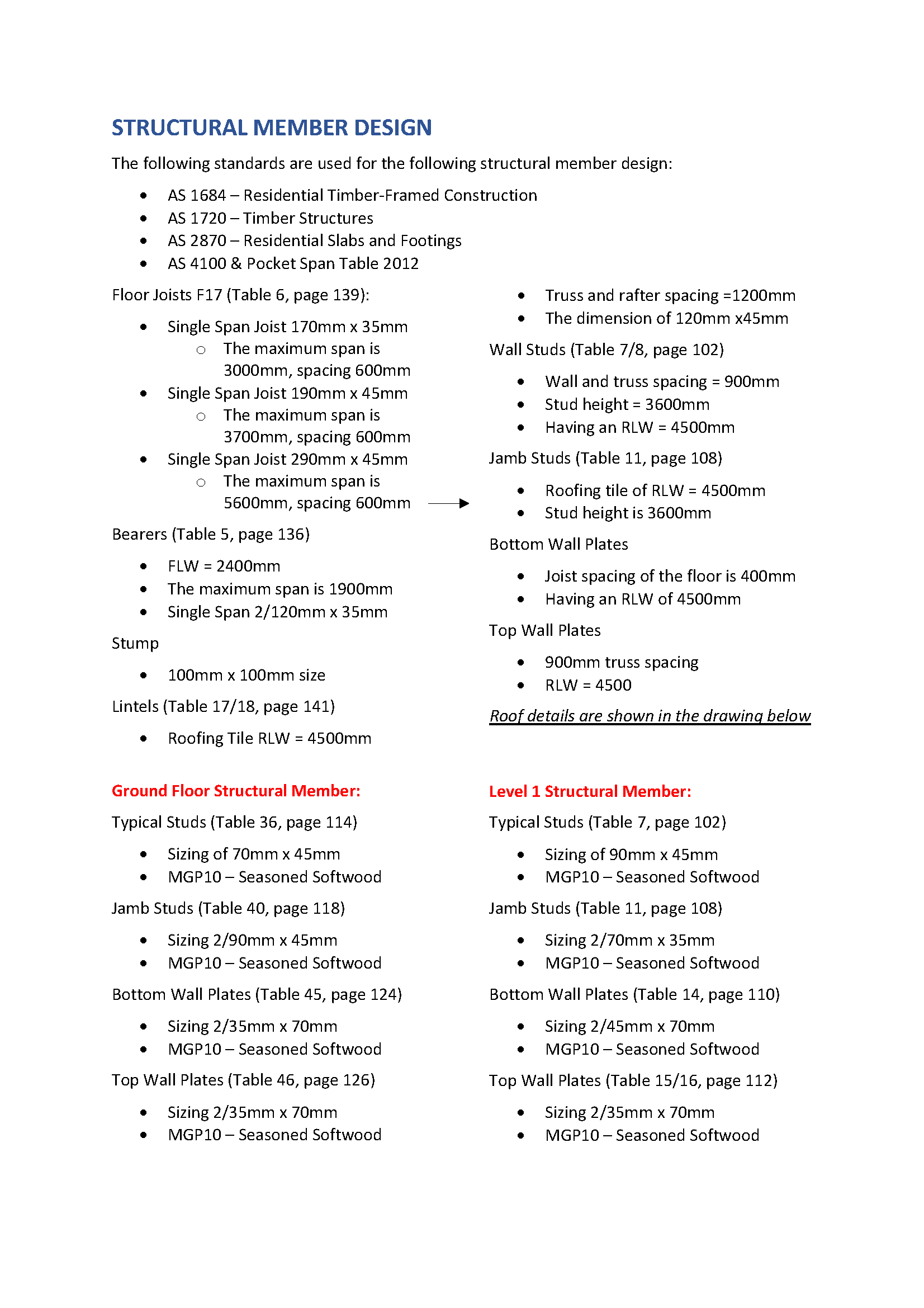

Summary of Structural Member Design

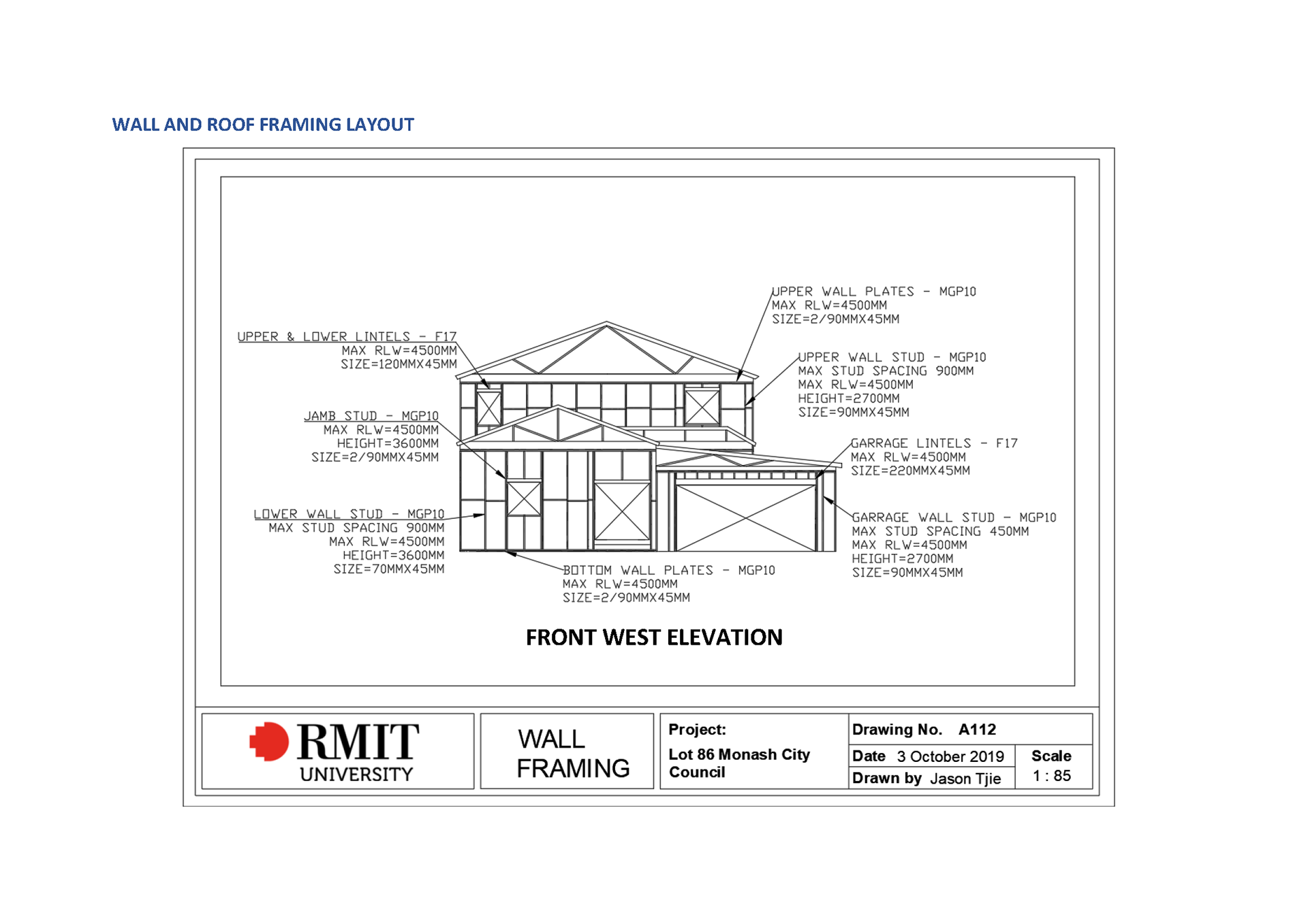

Front Elevation Timber Framing

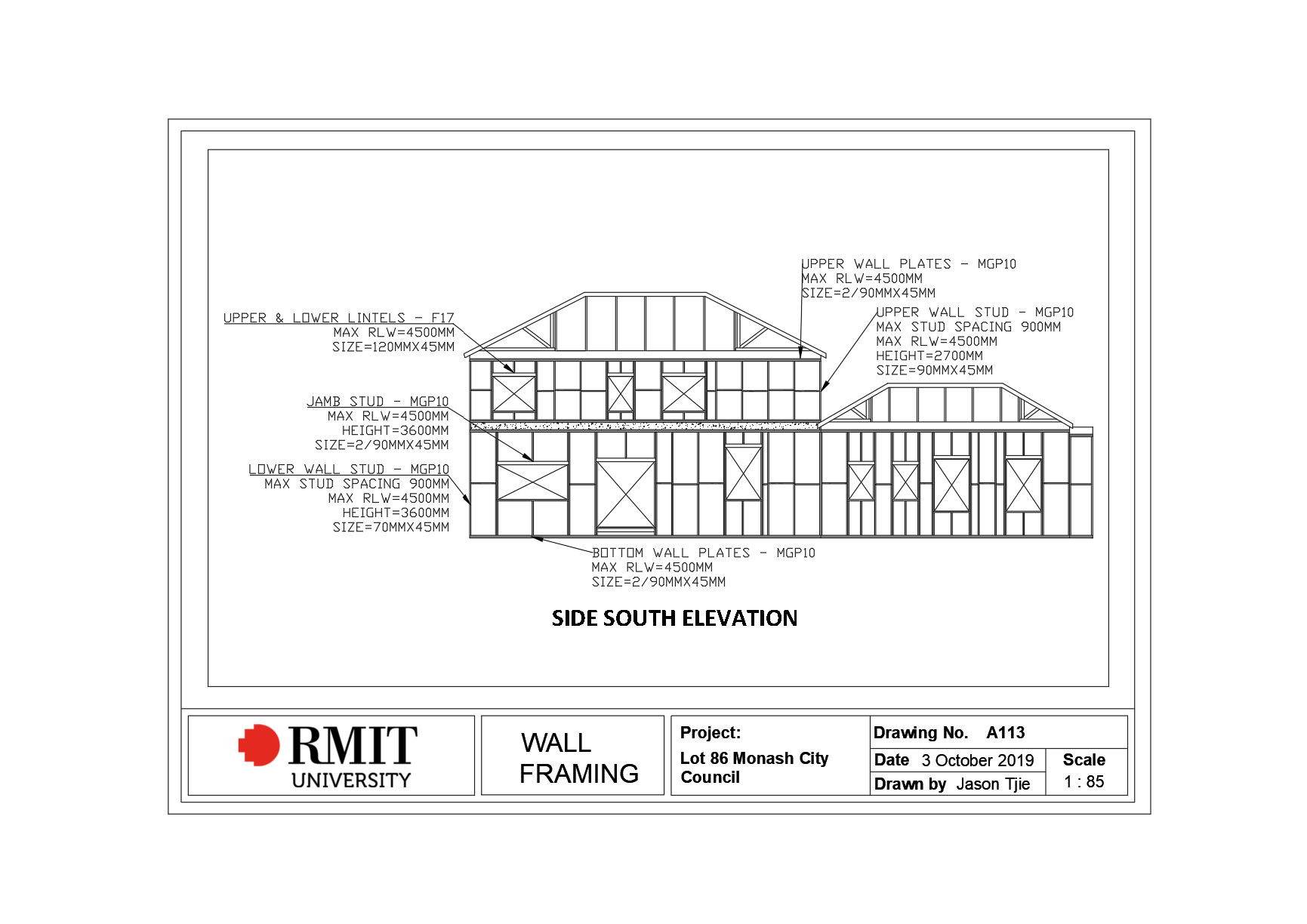

Side Elevation Timber Framing

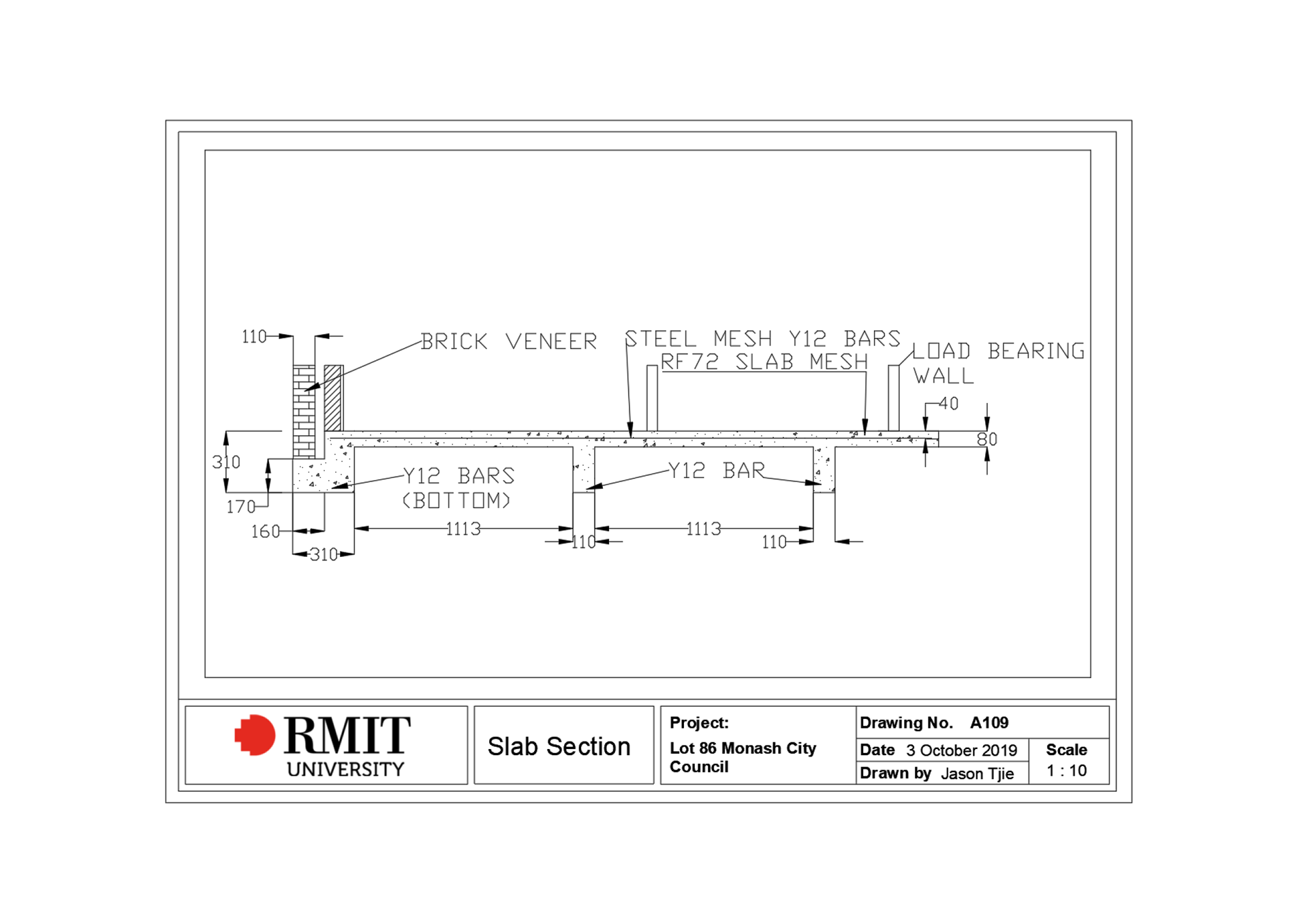

Slab Cross Section

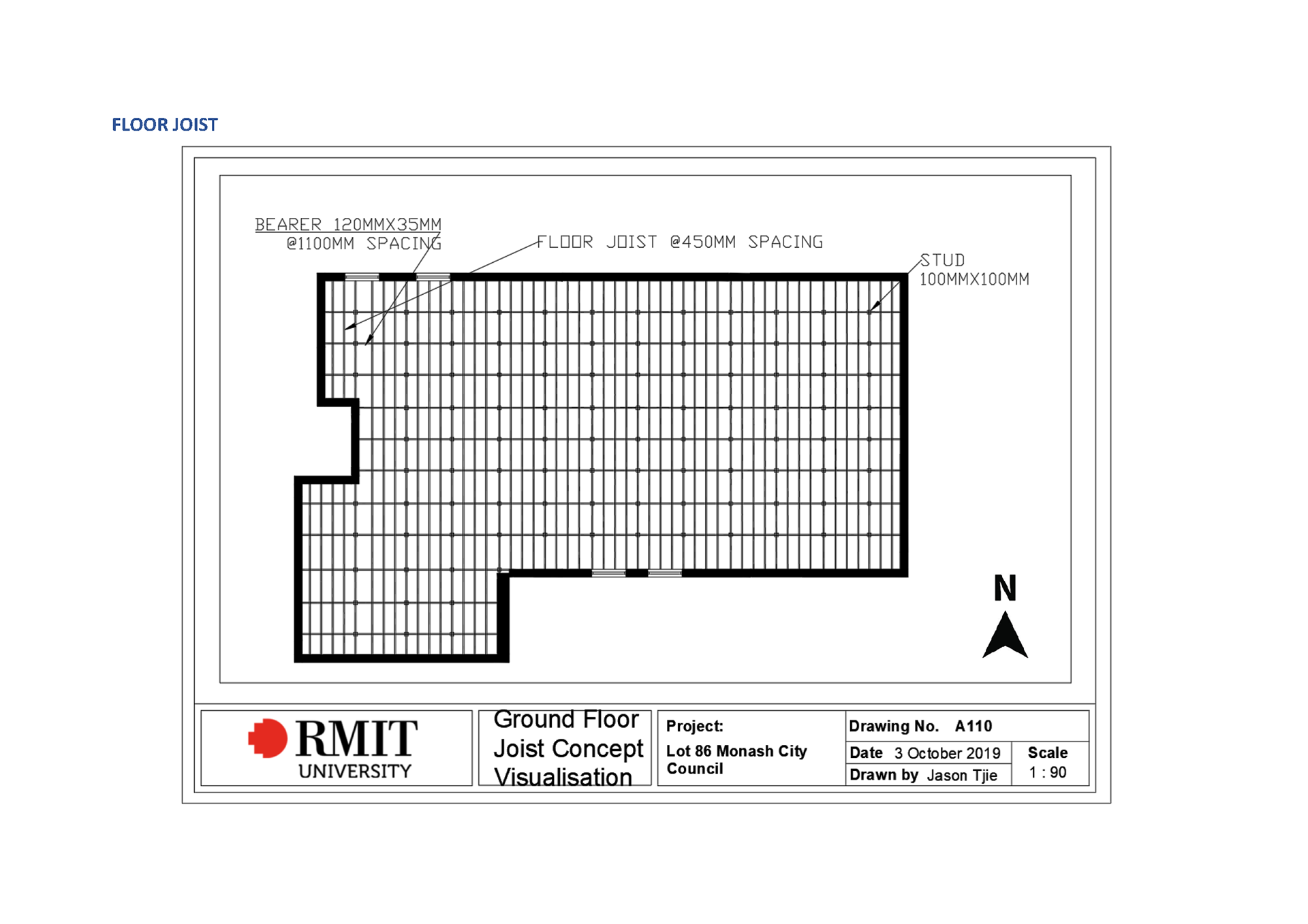

Ground Floor Joist Plan

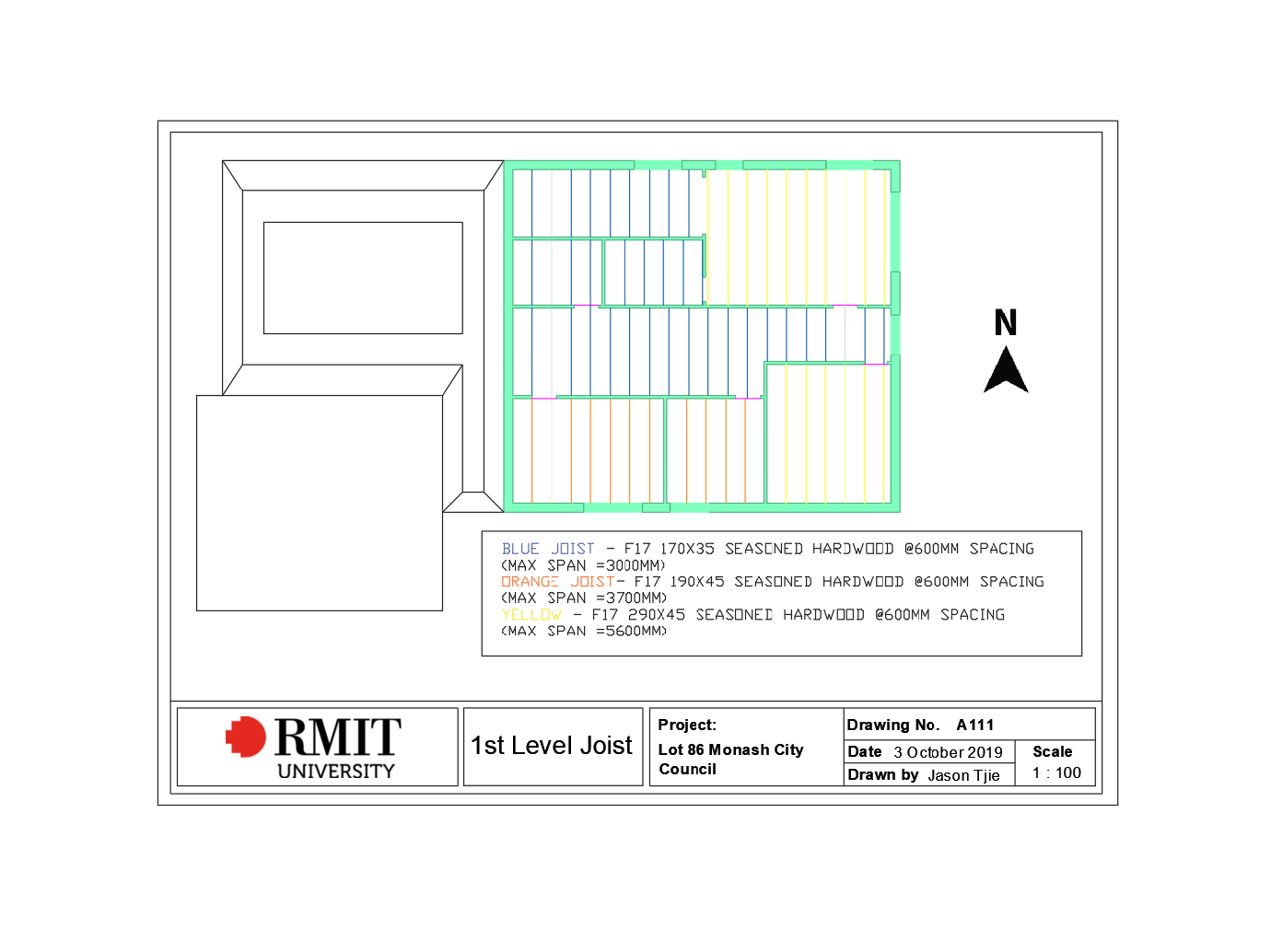

Level 1 Joist Plan

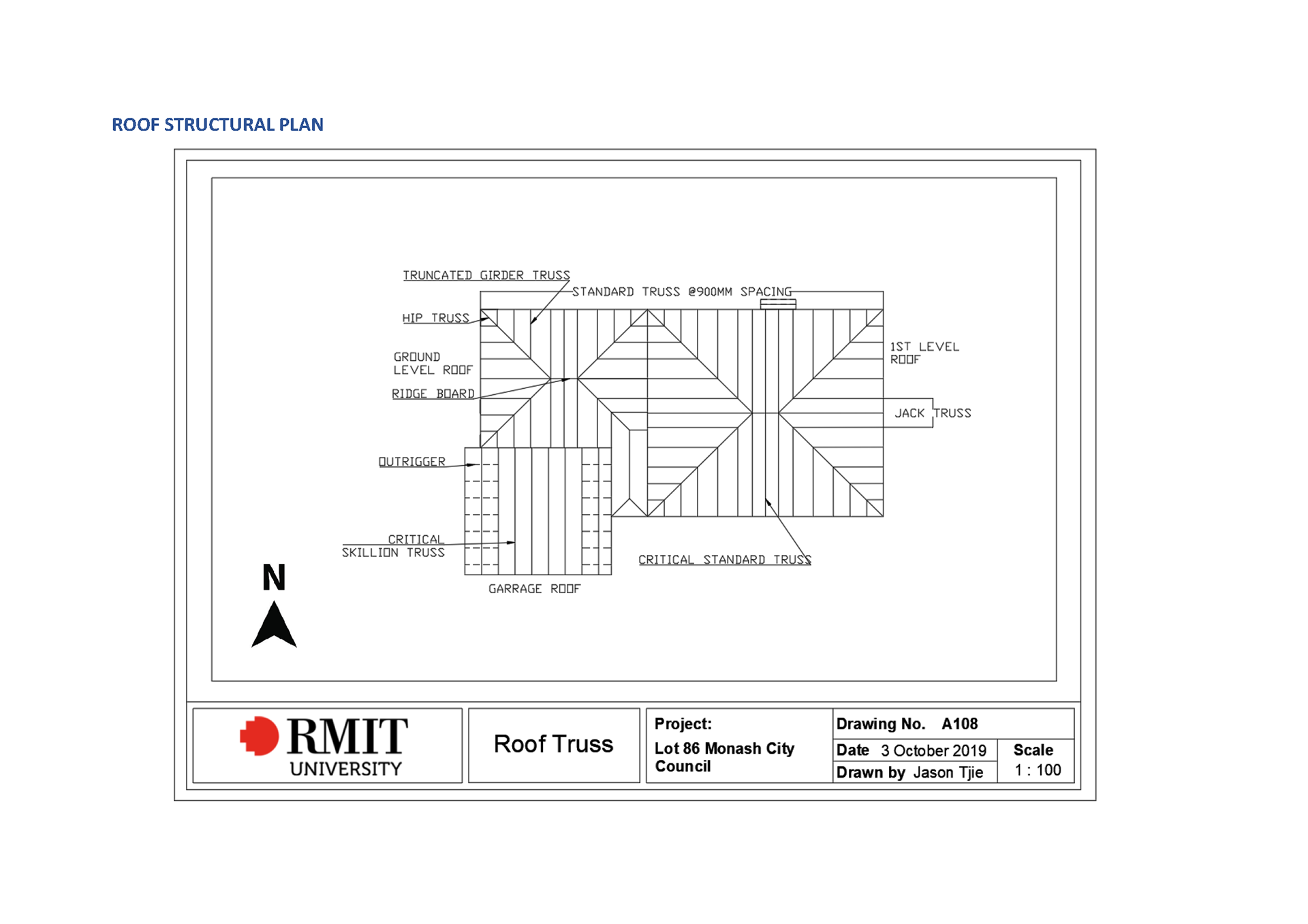

Roof Truss Plan

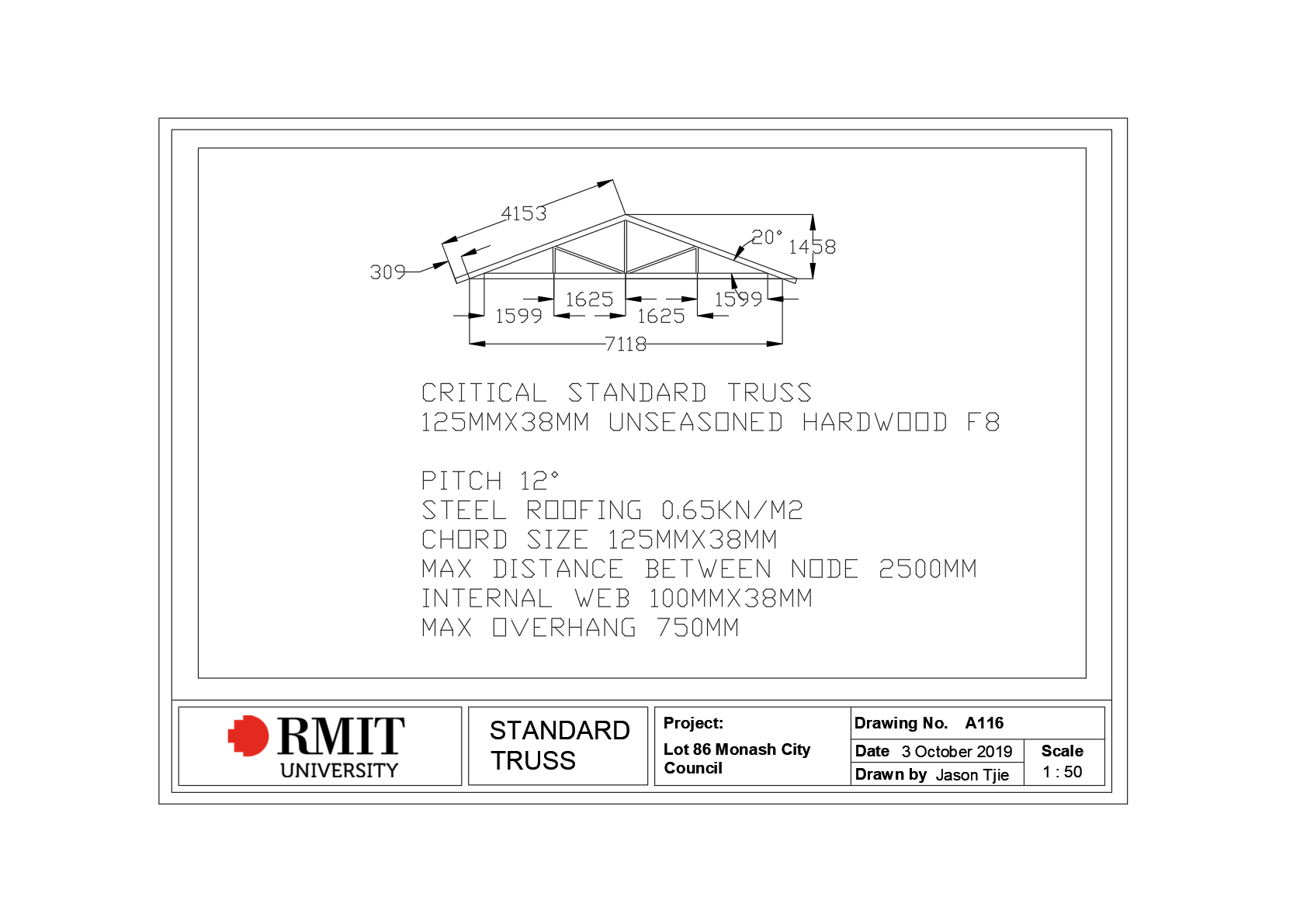

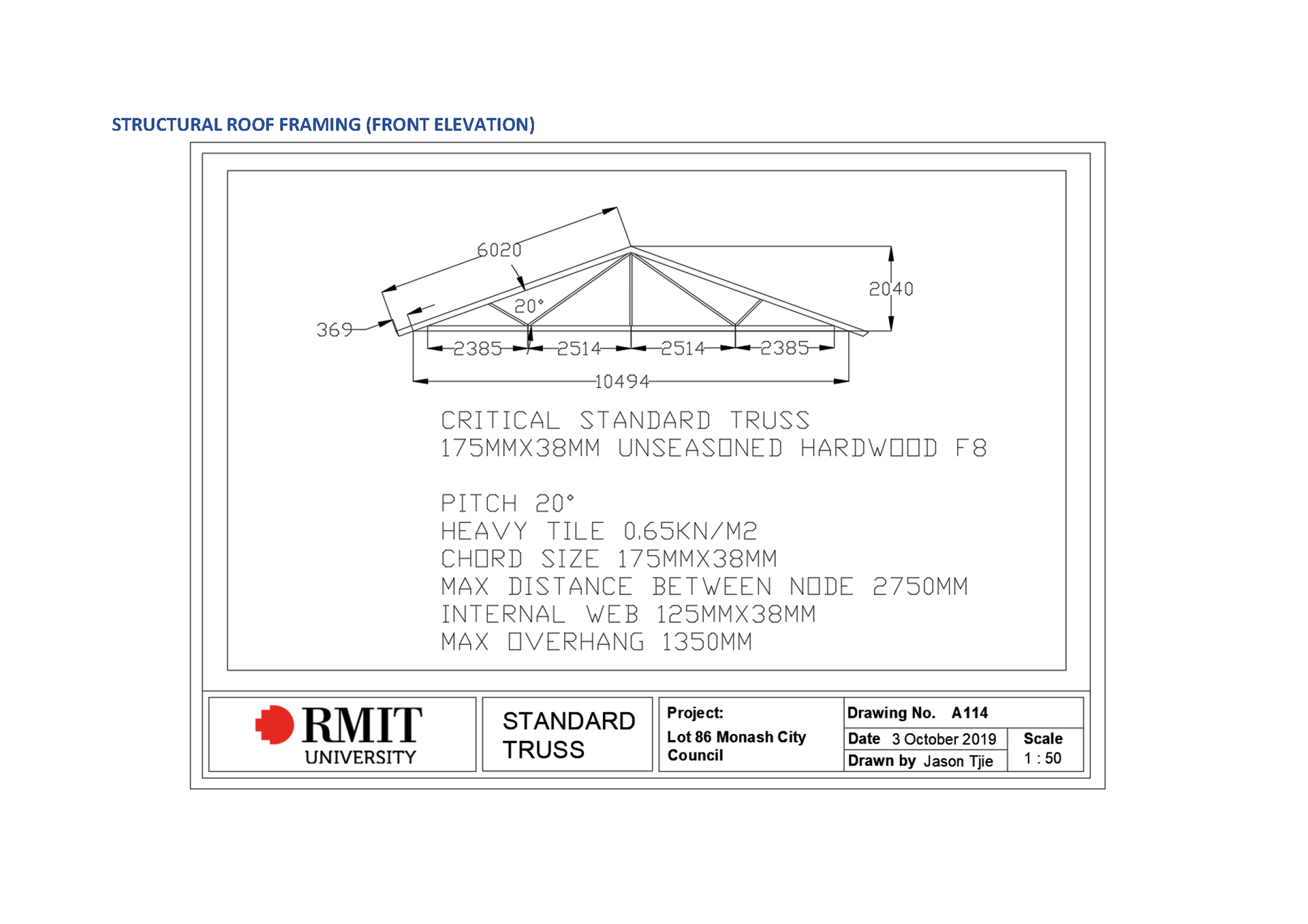

Roof Standard Truss

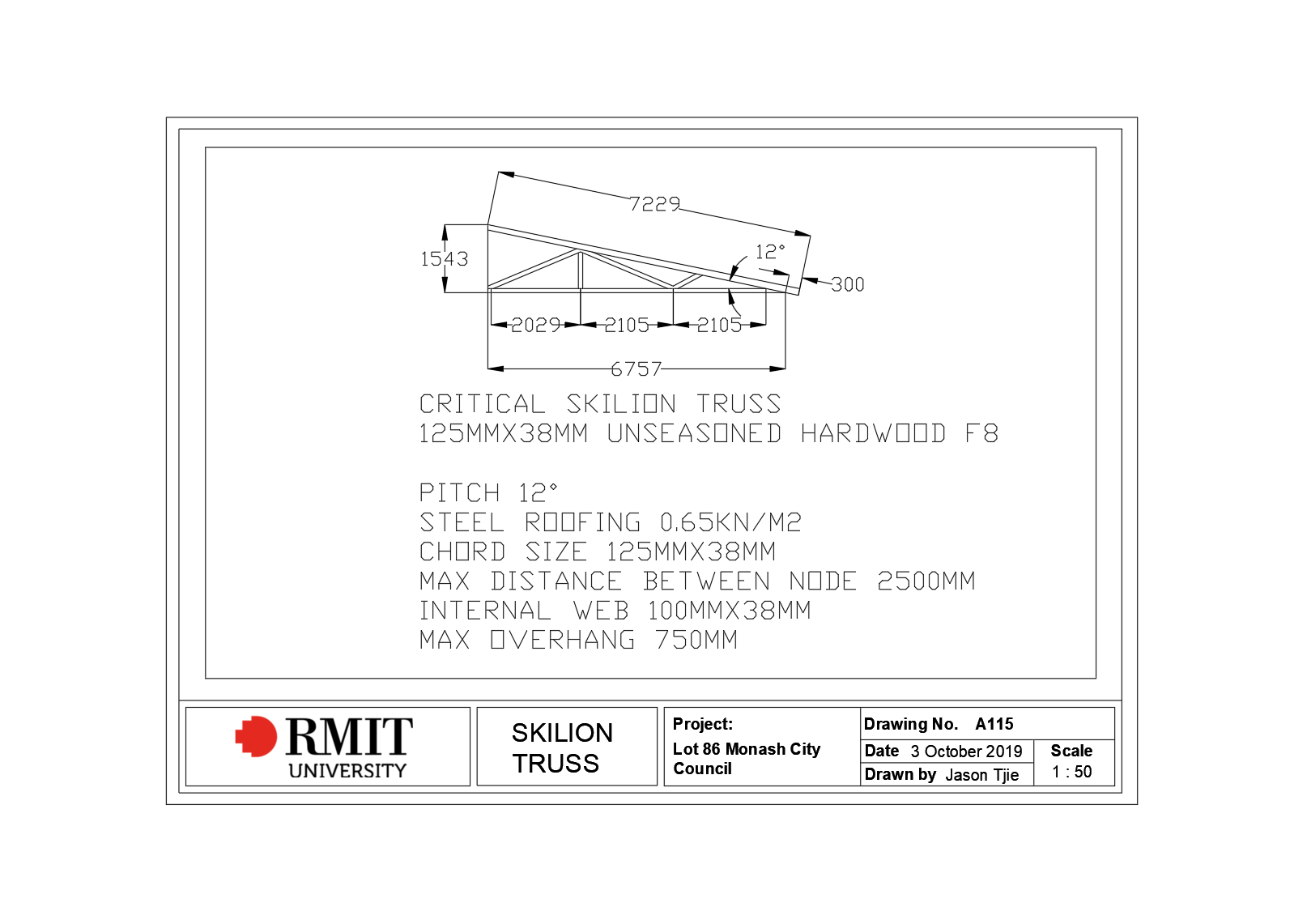

Roof Skilion Truss
